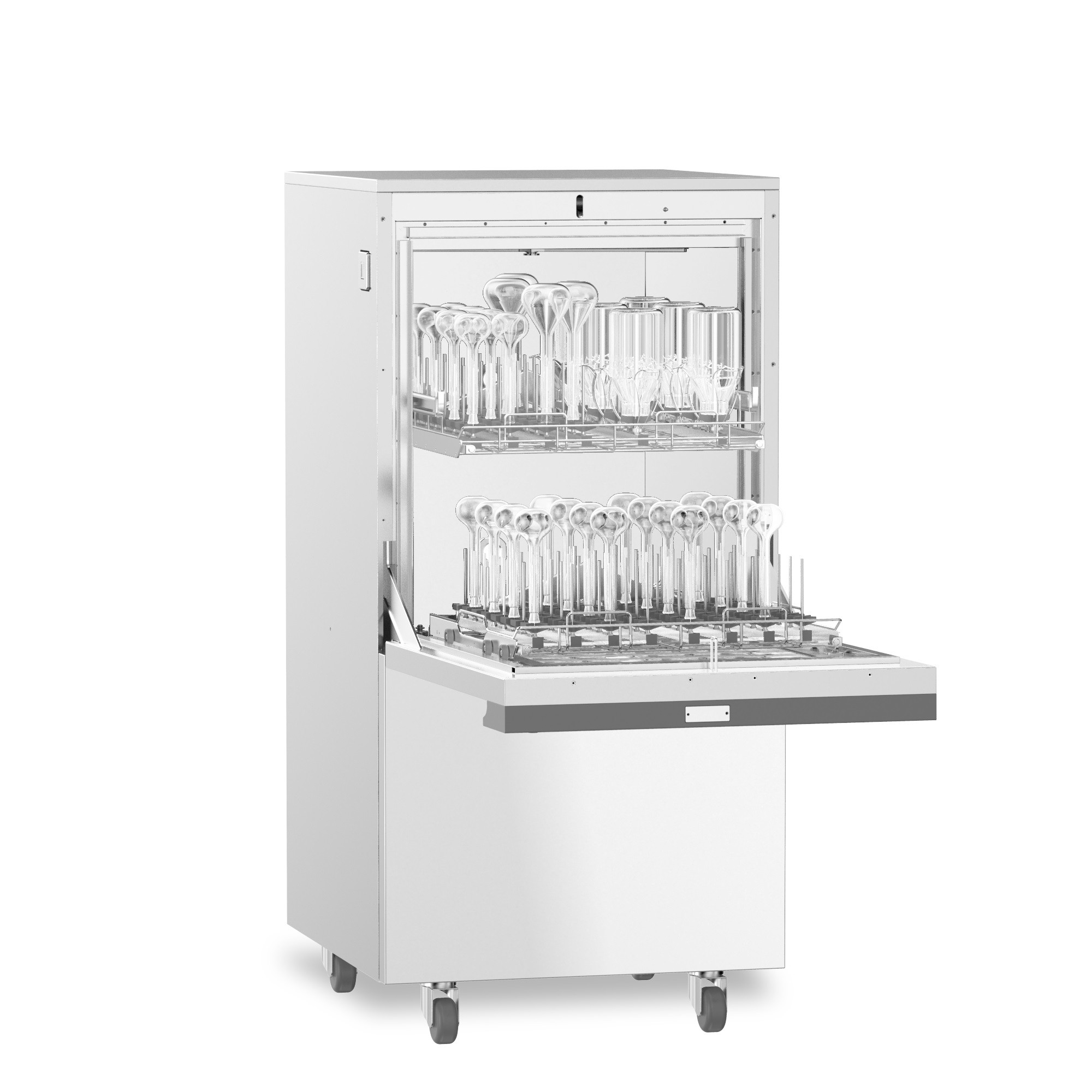

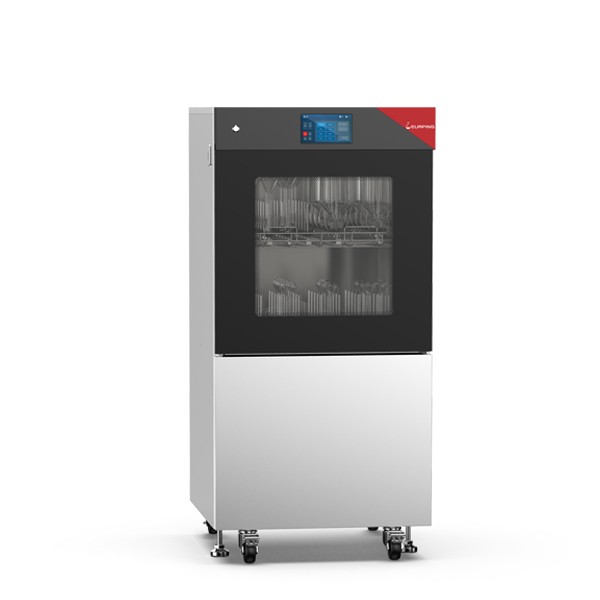

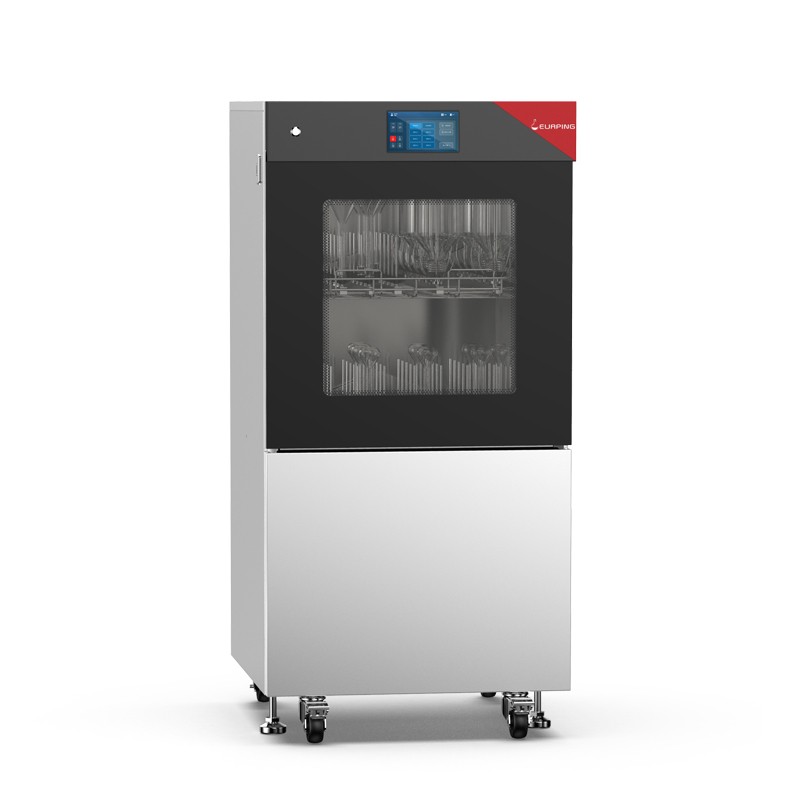

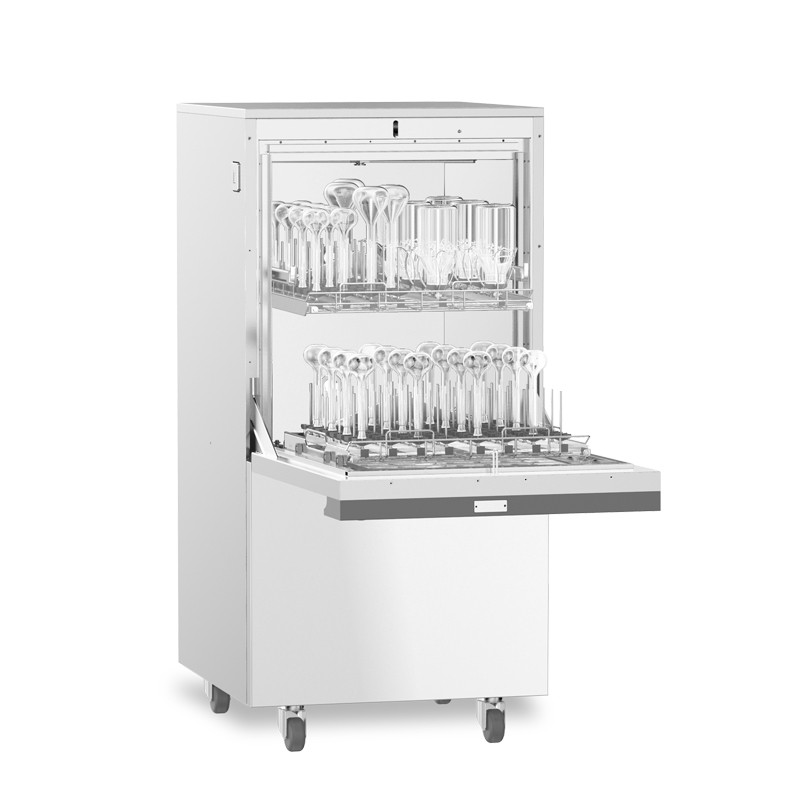

LW230 Laboratory glassware washer

Product Item：LW230

Heating power:4 kw

Cavity volume:223 L

Inner Dimensions: 546mm(L)*573mm(W)*726mm(H)

External Dimensions: 670mm(L)*760mm(W)*1400mm(H)

Description

Laboratory glassware washer - LW230

LW230 laboratory glassware washer adopts microcomputer chip control technology with 7 inch full color OLED LCD touch screen operating system.

A variety of cleaning procedures were setted, including 30 standard procedures(such as fast cleaning、grease、biological、lubricating oil, etc.)and 120 self-defined procedures, in each self-defined procedure, the user can adjust various cleaning parameters such as water source, cleaning temperature, cleaning agent type and addition amount, circulating water pump frequency and save them automatically.

Double circulation pump adopts variable frequency soft-start function, avoiding damage to glassware caused by excessive water pressure when the pump is started, the circulating water can be adjusted from 0-600L/min by adjusting the frequency of the water pump during cleaning process.

The new back water supply method with two parallel water supply ensure the pressure of each cleaning basket and the spray outlet is uniform.

Technical parameter

Microcomputer control system

7 inch full color touch screen

Chamber material: 316 stainless steel

Shell material: 304 stainless steel

Pipe material: 316 stainless steel+pharmaceutical silicone

Circulating water volume: 600L/min

Circulation pump with variable frequency soft-start function

Cleaning data save with U Disk

Printer: RS232 interface

Peristaltic pump with double channel
