Cage and rack washers-IVC100

Product Item：IVC100

Chamber volume:1200L

External Dimensions:2050mm(W)*850mm(D)*1950mm(H)

Chamber Material:316L stainless steel

Description

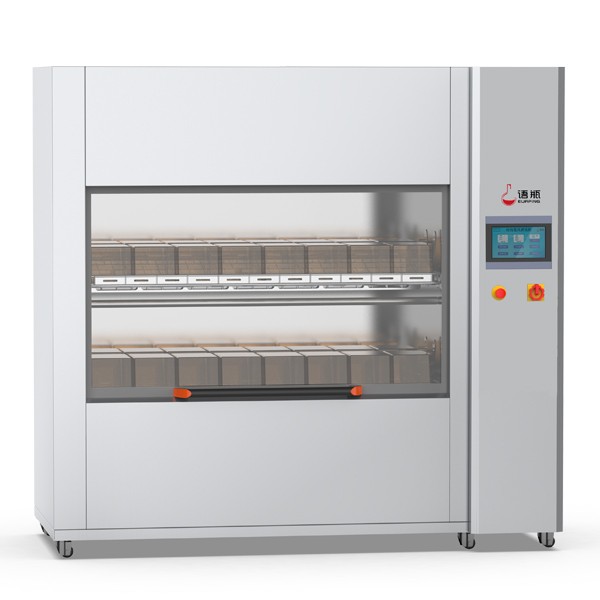

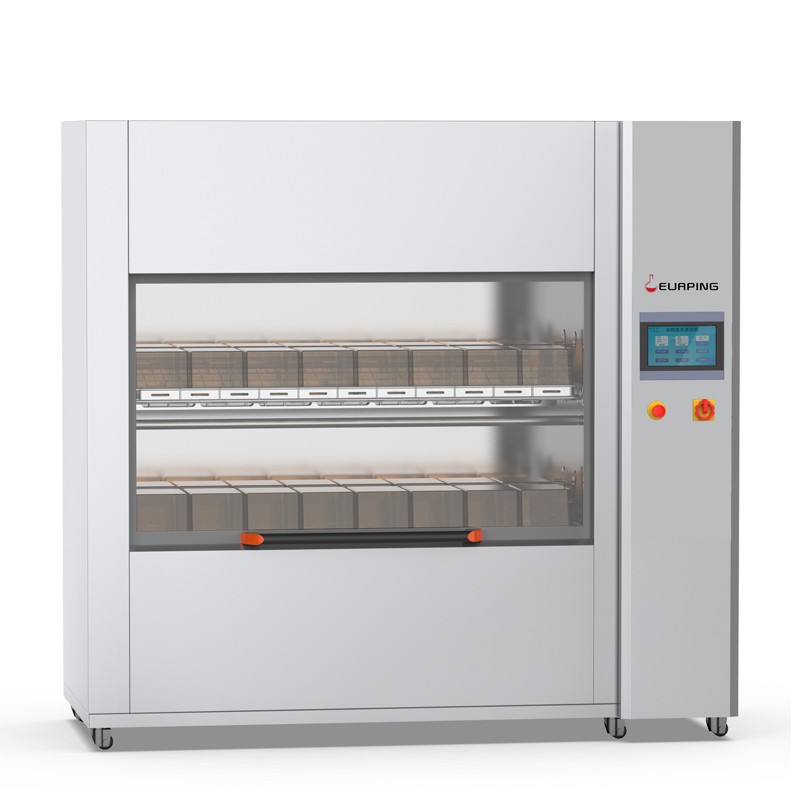

Cage and rack washers - IVC 100

Make your research results trustworthy, increase animal welfare more effectively, and comply with AAALAC regulations.

Principle：Demineralized water is the working medium，the water in the cleaning chamber is circulated in the cleaning pipeline through a large-flow circulating pump, and the cage is sprayed through the spray arm to wash；High-temperature purified rinsing water is recycled as the cleaning water for the next process, saving resources.

IVC -collect collection table is developed by our company based on the status quo of dumping cage litter in animal laboratories，preventing peculiar smell and litter foam from splashing during dumping.This machine is equipped with HEPA filter and negative pressure fan to suck the negative pressure of the litter into the storage bucket.

performance characteristics:

1.Negative pressure HEPA filter exhaust in the whole process, adsorb litter droplets and peculiar smell.

2.There are large glass windows on both sides of the equipment, and the top is equipped with illuminators to increase light transmission.

3.Handrails are installed on both sides, and the bottom is equipped with casters to facilitate the movement of the equipment.

4.There is a removable large-capacity dirt bucket at the bottom of the equipment.

Simen S7-1200 PLC control system

10.2 inch full color touch screen

Chamber material:304L stainless steel

Shell material: 304 stainless steel

Pipe material: 304 stainless steel+pharmaceutical silicone

Circulating pump 1:1200L/min

Circulating pump 2: rinsing flow 400L/min
